65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer

Product Categories
Shaanxi Shinhom Enterprise Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer

Brand Name : Shinhom

Model Number : TP3415

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Name : Inverter Transformer

Power : 375W

Operation temperature : -40℃ to +65℃

Isolation : 3000Vdc

Frequency : 350KHz

Input Voltage : 65VDC

Contact Now

Pulse Transformer for inverter , inverter transformer

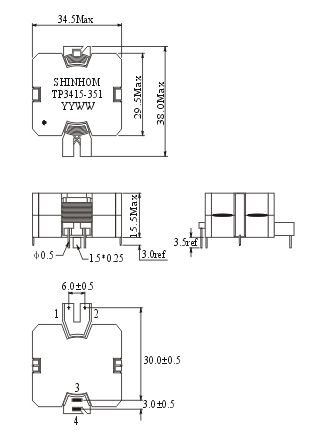

  1. Turns ratio: (3-4):(2-1)=1:6
  2. L(3-4): 3.2uH Min@10KHz,0.1V
  3. Lk(2-1): 2.2uH Max@10KHz,0.1V
  4. DCR(3-4): 4.0mΩ Max
  5. DCR(2-1): 195mΩ Max
  6. Pri rated current: 25.58A(98A Peak)
  7. Sec rated current: 3.44A(16.3A Peak)
  8. Pri rated voltage: 65V
  9. Sec rated voltage: 311V(389V Max)
  10. Rated frequency: 50KHz
  11. Rated power: 375W
  12. Hi-Pot: 3000Vac, 1mA,60S Coil to C oil
  13. Operating temperature: -40℃ to +65℃

65VDC Pulse Transformer For Inverter, 350KHz Inverter Transformer
