RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire

Name: RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire
Brand: Shinhom
Price: 1 USD

RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire Manufactures

Brand Name : Shinhom

Model Number : SQ

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Wire : Varnished wire

Turns ratio : 1:1

Core : Ferrite core

Test frequency : 10kHz

Phase : Single Phase

Operating temperature : -40ºC to +115ºC

Contact Now

Common Mode Choke Coils With Bypass For RFI Suppression , Common Mode Power Line Choke

Common mode inductors (common mode chokes) are commonly used in switching power supplies of computers to filter common mode electromagnetic interference signals.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.

APPLICATION:

Common mode choke coils with bypass
Common mode and differential inductance in one single component
excellent EMI suppressor for LED ballast
High-frequency and low loss
Ideal for lighting ballast and SMPS application, AC-DC, DC-DC, motor regulation, AC regulation RoHS compatible (Pb-free) versions are available
Customized specifications are welcome

Electrical parameters:

L: 230uH±40%@10KHz,0.1V
DCR: 3.6mΩ Max
Rated current: 16.0A Max(Temp. rise 40℃ Max)
Rated voltage: 250V Max
Hi-Pot: 1500Vac,3mA,3S Coil to Coil
Operating temperature: -25℃ to +115℃
Storage temperature: -25℃ to +65℃

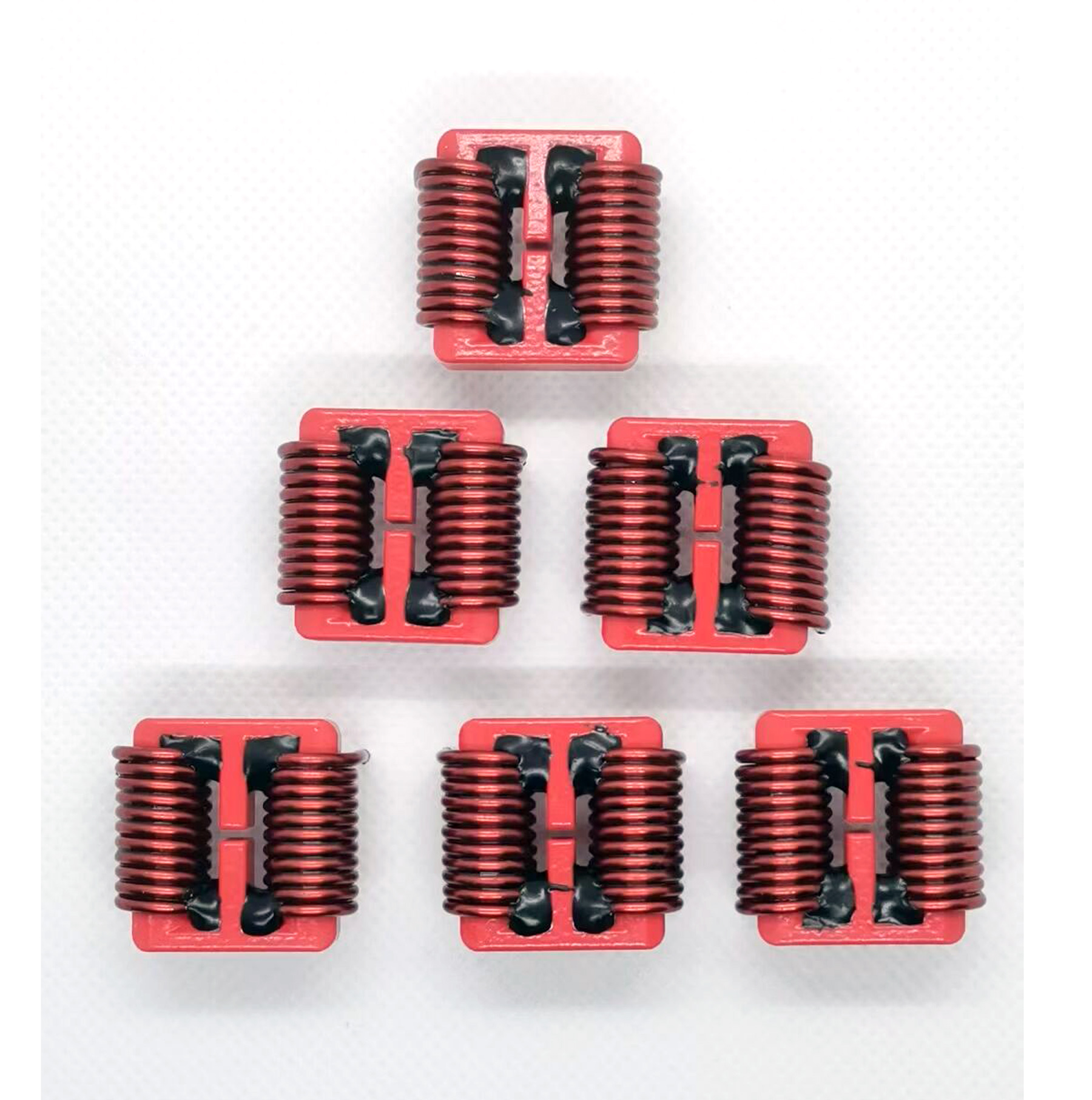

RFI Suppression Common Mode Choke Coils With Bypass Varnished Wire

Notes: Customized is available
