Light Weight High Frequency Transformer , Switching Power Supply Transformer

PQ3220 Switching Power Transformer, for Power Supply, High Frequency power transformer,pulse transformer

FEATURES:

• Low loss/High saturation magnetic flux density ferrite
• Compatible with multiple output switch mode power supplies
• High-power output
• A wide range of output
• Safety standarda approved
• Rohs Compliance

Applications:

• SMPS: Half Bridge and Full Bridge structure,can fine-tune the inductance, etc., are widely used in fax Machines, PBX.
• High-temperature resistantHigh frequency transformer -Suitable for AC/DC inverter or DC/AC converter. Customized designs are welcome.
• Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
• Switching power supplies, chargers, alarm system, TV/CRT monitor displays, UPS, VCD/DVD players, audio/visual equipment, OA machines and inverter Typical products .
• Used in high-density installation with good shielding quality also used in wave carrier filter, power transformer and Aux-power transformer

ABOUT US:

Shinhom Enterprise was founded in Xi'an China with nearly 20 years of experiencing of designing & manufacturing transformers & Coils components.
High quality, low cost and best service are what we pursuit most!
Meanwhile, the certification of ISO 9001 by SGS system was also earned.
Shinhom is to remain a specialist in designing and manufacturing high-performance transformers,power inductors, choke coils power supplies for purchasers around the world.

high frequency isolation transformer

high frequency switching transformer

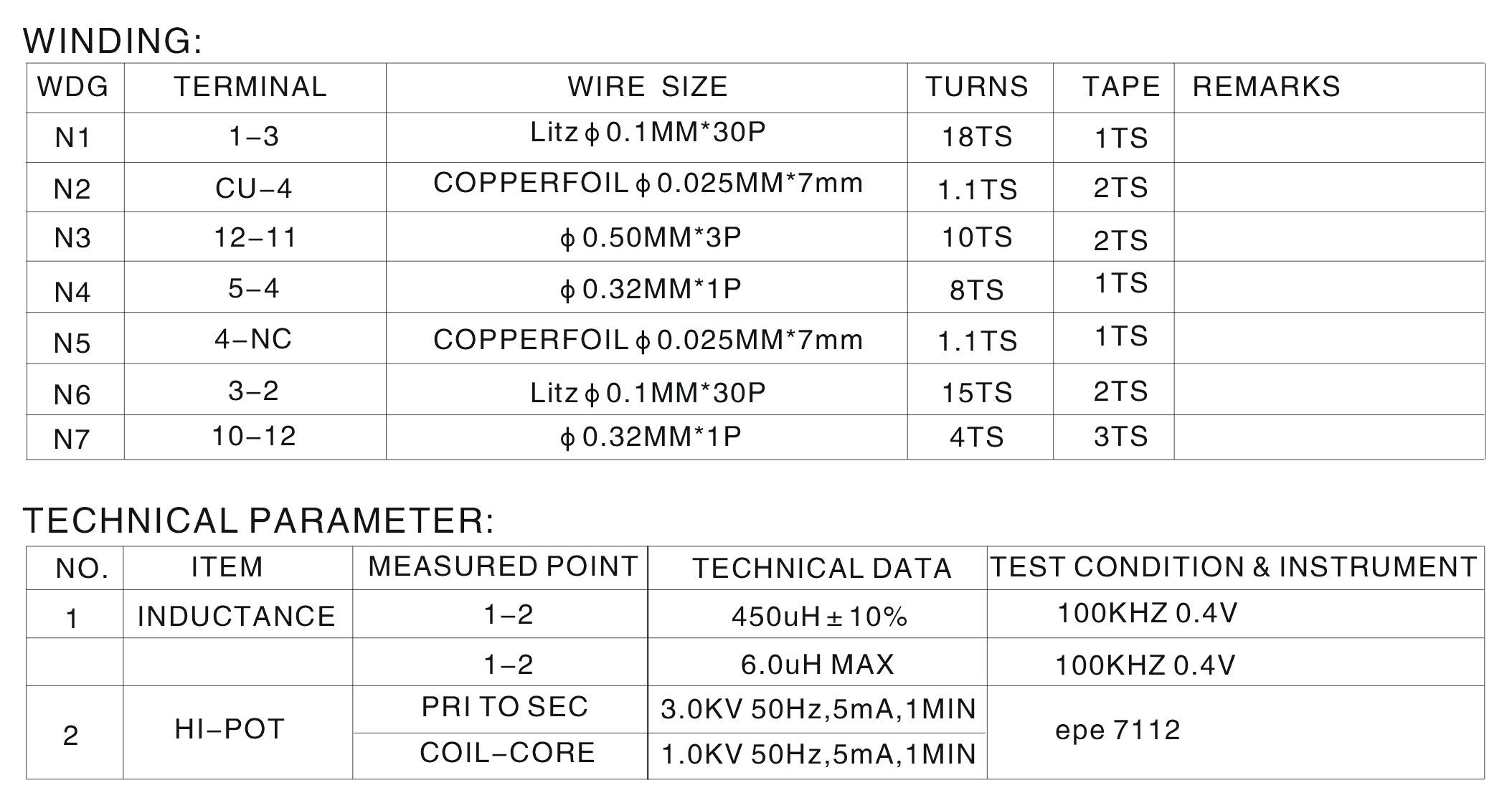

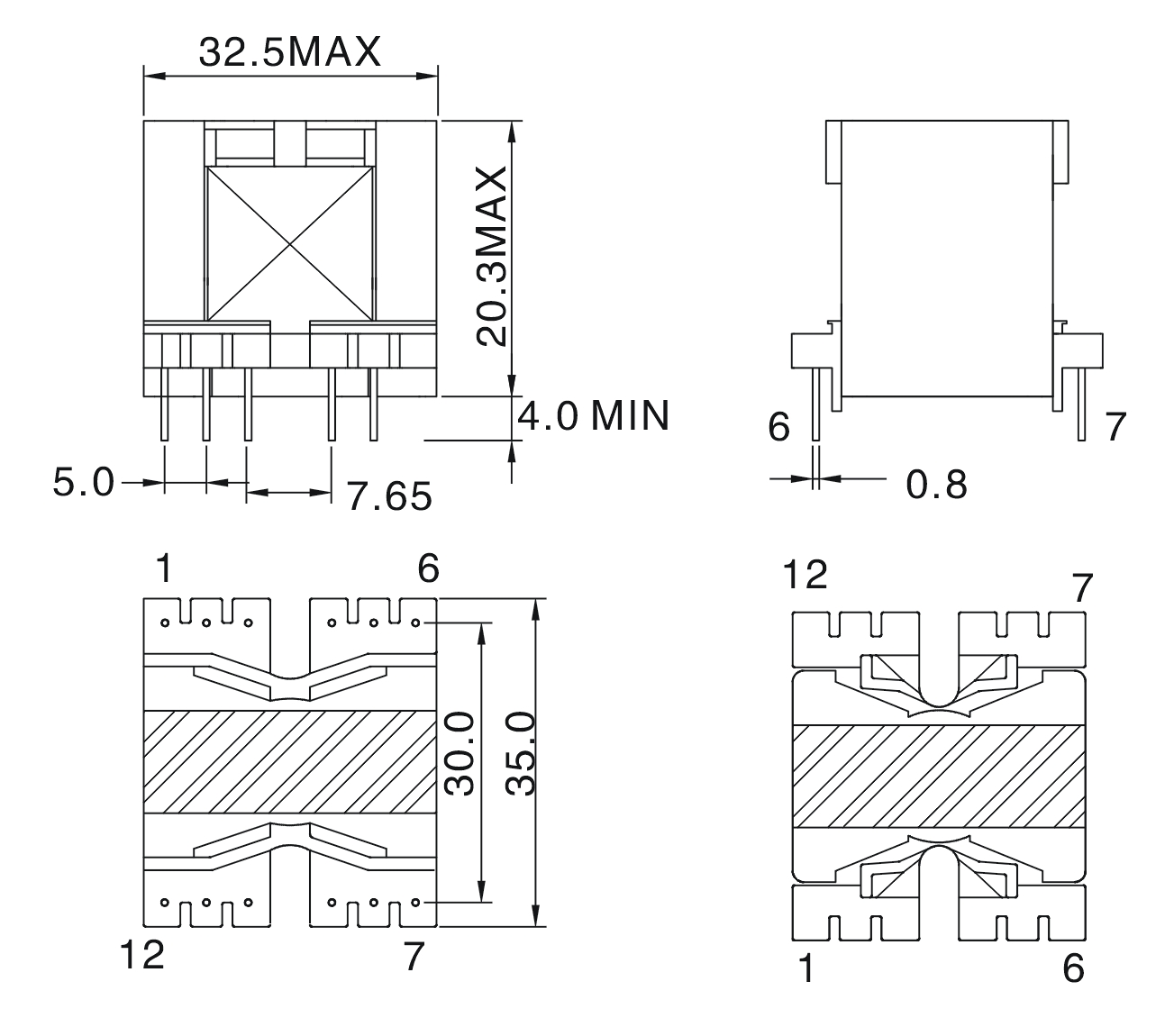

Light Weight High Frequency Transformer , Switching Power Supply Transformer Images
