Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output

Product Categories
Shaanxi Shinhom Enterprise Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output

Brand Name : Shinhom

Model Number : HT92

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Type : High voltage ignition coil

Alternate : 33% in 3min

Input : 220V

Operating frequency : 50Hz

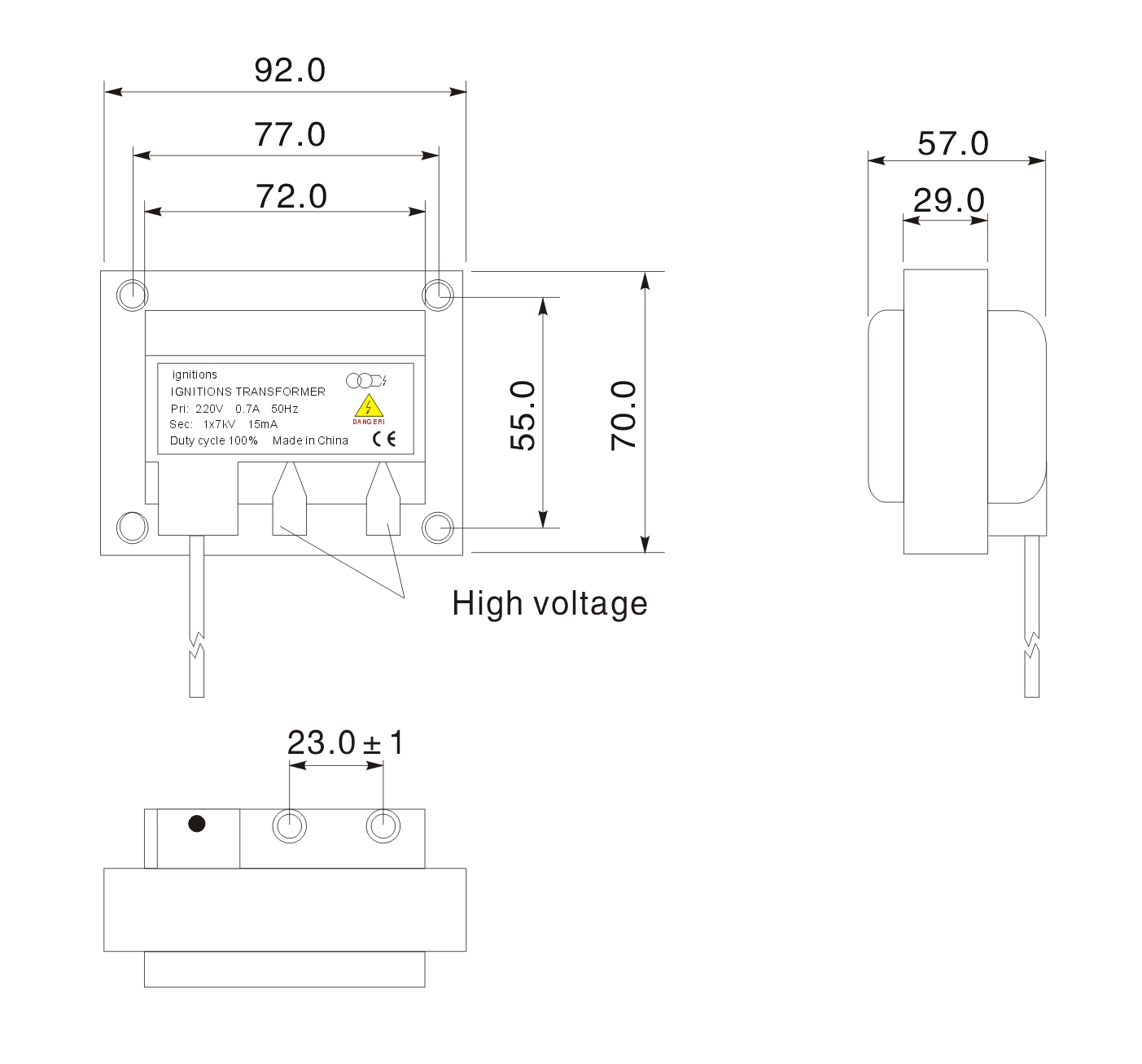

Size : 92 × 70 × 57mm

Ignition distance : 3 ~ 4mm

Contact Now

HT92 Series High Voltage Ignition Transformer,Ignition coil transformer for gas stove 220V input,2*12KV output

High-voltage ignition transformers are widely used for ignition of small burners, fuel gas burners, integrated burners, industrial combustion equipment, and etc.

Features:

  • Input: 220V,50Hz
  • Dimensions: 92 × 70 × 57mm
  • Ignition distance: 3 ~ 4mm
  • 3 minutes ignition efficiency: 33%
  • Ignition coils and custom-made transformers
  • High voltage trigger transformers ozone generator for industrial and appliances
  • Ignition coils for gas and oil burners
  • Custom-made transformers for a number of applications
  • High-voltage transformer types: power, pulsed

Electrical specification:

Item No. Primary Voltage output working time
HT92-S07A 220V 0.7A 50Hz 2x4kV 15mA ED25% 3min
HT92-S07B 220V 0.7A 50Hz 1x7kV 15mA ED33% 3min
HT92-S08 220V 1.1A 50Hz 1x8kV 15mA ED33% 3min
HT92-S10 220V 1.4A 50Hz 2x5kV 25mA ED25% 3min
HT92-F08 220V 1.1A 50Hz 1x8kV 20mA ED33% 3min
HT92-F10 220V 1.4A 50Hz 2x5kV 25mA ED25% 3min
HT92-A18

Enter220-240V

30VA 50/60Hz

Output2x12kV

Vpp20mA

 AB 33% 3min
HT92-A18L

Enter220-240V

25VA 50/60Hz

Output2x12kV

Vpp15mA

 AB100% 3min

Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted

Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output

Notes: More products can be customized

Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output
