SMD RFID Coil Antenna Molded 11.8x3.6x2.7mm For Keyless Entry System

Brand Name : Shinhom

Model Number : TP1103A

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

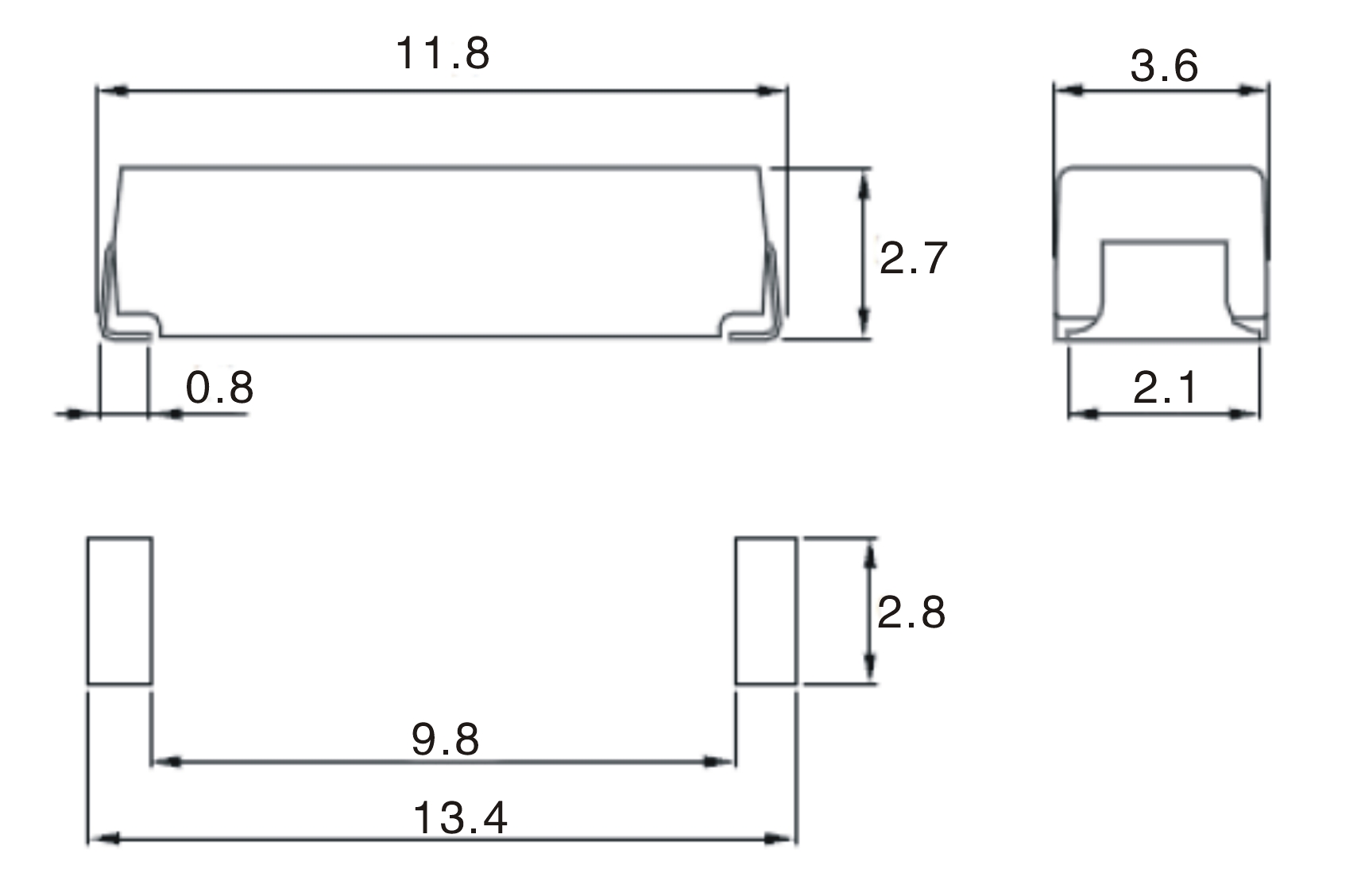

Size : 11.8x3.6x2.7mm

Inductance : 2.36mH ~ 9.5mH

Frequency : 125KHz

Q : 35 min.

Packaging : 3000pieces/reel

Operating temperature : -40℃ to +85℃

Contact Now

Molded 11.8x3.6x2.7mm SMD transponder coil,RFID antenna coils,RFID transponder inductor

Features:

  • Because it is complete resin mold, it is high reliability
  • Terminals are high reliability by a spring structure
  • High Q and high sensivility due to optimaized magneticmaterial
  • Applicable to reflow soldering
  • Terminals are lead-free

Applications:

  • Receiving LF Antenna coils for the in-car devices shown below
  • Tire-pressure monitoring system (TPMS)
  • Keyless entry system
  • Wide operating temperature range (− 40°C~+85°C)

Electrical specification:

SMD RFID Coil Antenna Molded 11.8x3.6x2.7mm For Keyless Entry System

Part Number Inductance Test Frequency Tolerance Unloaded Q Min.
TP1103A242J 2.36mH 125kHz ±5% 35
TP1103A722J 7.2mH 125kHz ±5% 35
TP1103A952J 9.5mH 125kHz ±5% 35
  • This inductance value is an example of the current commercial product.
  • If a different inductance is needed, please contact us.

For More RFID antenna coil, Please Go To Our Website Or Contact Us.

SMD RFID Coil Antenna Molded 11.8x3.6x2.7mm For Keyless Entry System
