Trf Series Small Profile Common Mode Choke Black Color With Plastic Case Protection

  • 1
  • 2
  • 3

Brand Name : Shinhom

Model Number : TRF

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Nature of Operation : Choke Coil

Winding : Common mode

Core : Toroidal ferrite core

Current : Up to 20A

Test frequency : 10KHz

Specification : RoHS, ISO9001

Contact Now

TRF Series Small Profile Ferrite Core Choke Black Color With Plastic Case Protection

FEATURES:

  • 0.3A to 20A ratings
  • 0.7mH to 100mH dual chokes
  • Excellent Mechanical Strength
  • 100KHz to 3MHz common mode resonance
  • High Reliability and variant PCB-mount housing
  • Low resistance and temperature rise



COMMON APPLICATIONS:

  • DC/DC, AC/DC line noise suppression
  • Communication System
  • Automotive Systems
  • LCD/PDPTelevisions
  • Computer Peripheral Equipment



TECHNICAL INFORMATION:

  • Inductance tolerance in +50% -30%
  • Max operating voltage:250V at 40℃
  • IDC Max: rating AC/DC current A @40℃
  • Hi-Pot 1500Vac winding to winding 3S.
  • Inductance Testing: 10KHz 0.1V HP4284A
  • RDC:QuadTech 1880 Milliohmmeter
  • Surge current Max 10ms: 20X IDC
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃℃ to +105℃℃
  • Resistance to soldering heat:260℃ for 10 seconds



Note: 102, 112, 114, 142, 122,152 horizontal
202, 212, 214, 242, 222, 252 vertical

Product specifications can be customized

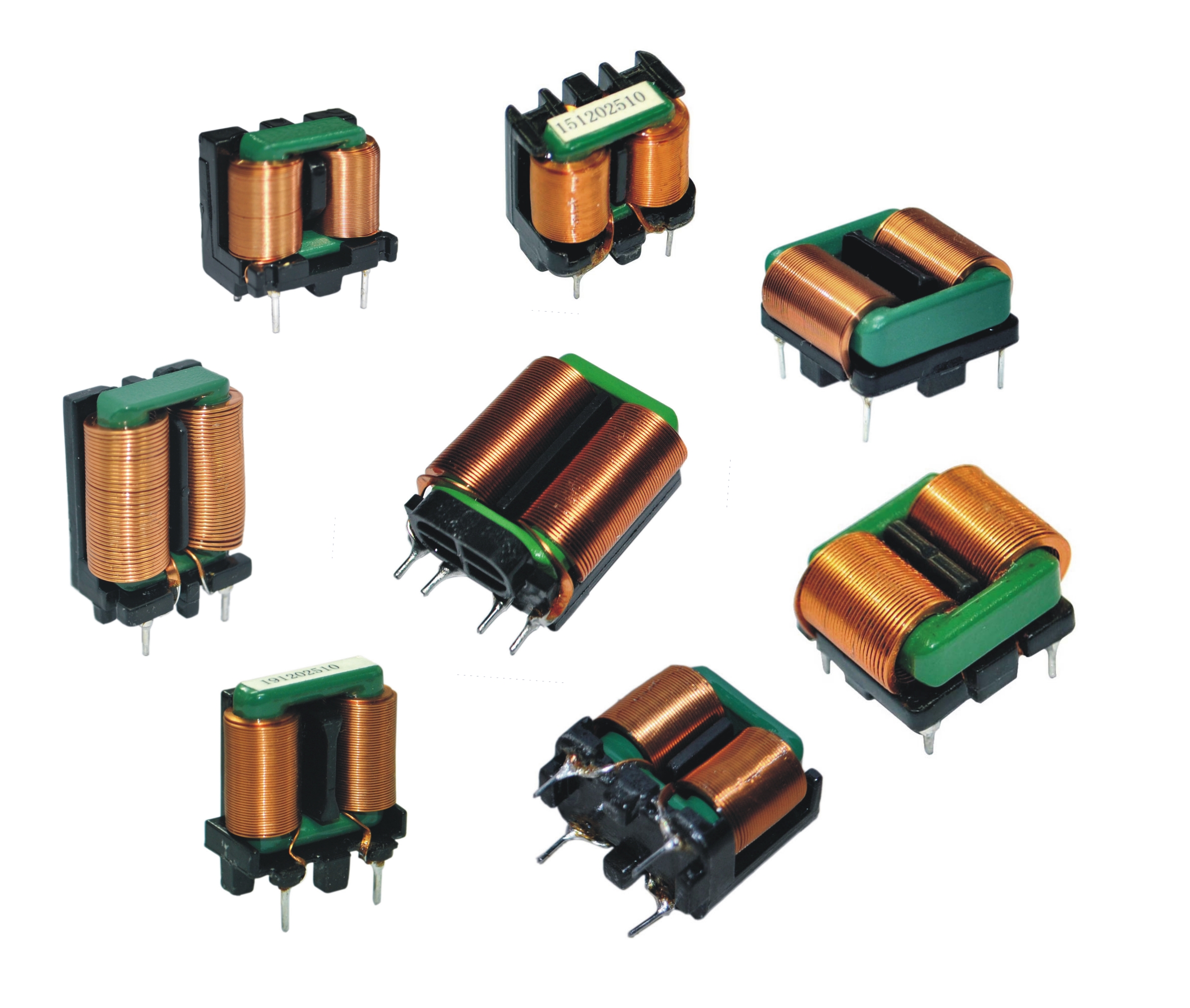

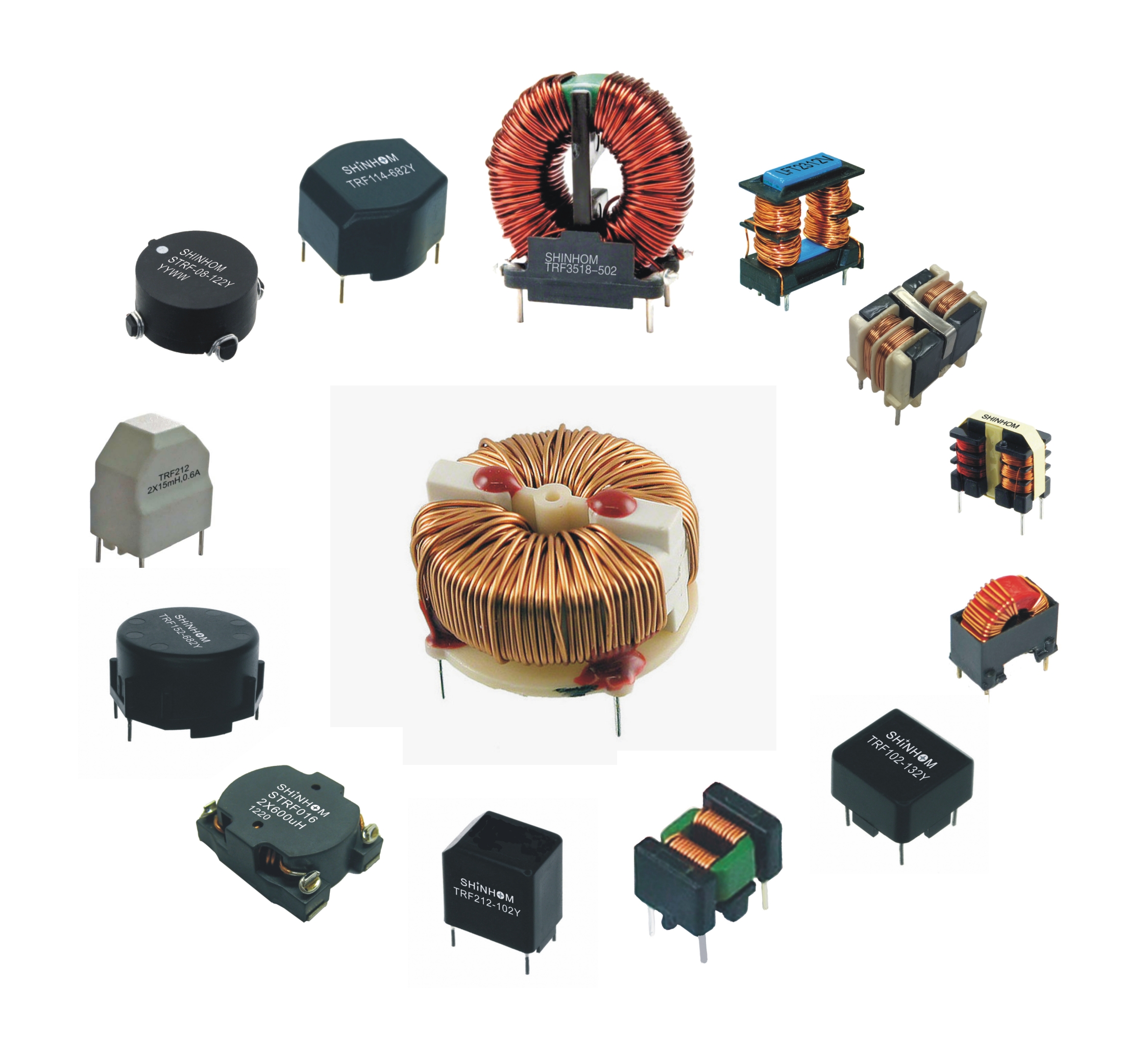

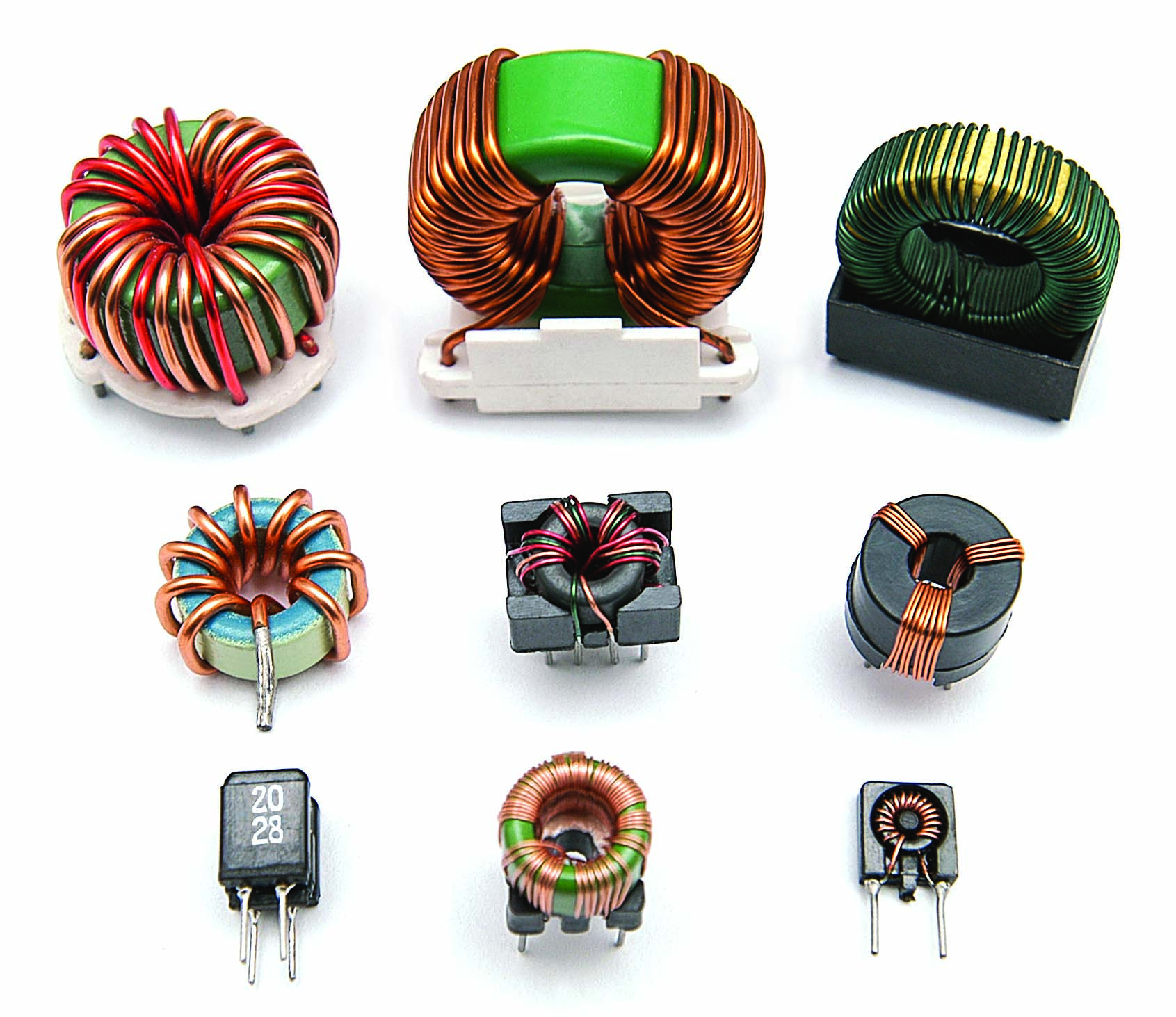

Trf Series Small Profile Common Mode Choke Black Color With Plastic Case ProtectionTrf Series Small Profile Common Mode Choke Black Color With Plastic Case ProtectionTrf Series Small Profile Common Mode Choke Black Color With Plastic Case Protection
