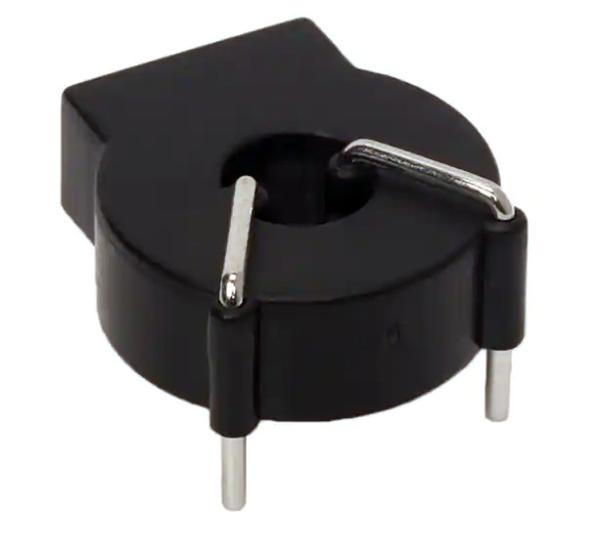

50Hz Magnetic Toroidal Coil CT PCB Current Transformer

Name: 50Hz Magnetic Toroidal Coil CT PCB Current Transformer
Brand: Shinhom
Price: 1 USD

50Hz Magnetic Toroidal Coil CT PCB Current Transformer Manufactures

Brand Name : Shinhom

Model Number : CT Series

Certification : ISO9001:2015, ROHS

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Turns : 500 , 1000 , 2000

Frequency range : 50Hz

Specification : ROHS, CE, SGS

Accuracy class : 0.5 , 1

Type : PCB Mounting

Contact Now

Current Transformer , Current Sensor

Magnetic Components current sense transformer

A current transformer (CT) is a type of transformer that is used to measure alternating current (AC). It produces a current in its secondary which is proportional to the current in its primary.
Current transformers, along with voltage or potential transformers, are instrument transformers. Instrument transformers scale the large values of voltage or current to small, standardized values that are easy to handle for measuring instruments and protective relays. The instrument transformers isolate measurement or protection circuits from the high voltage of the primary system. A current transformer provides a secondary current that is accurately proportional to the current flowing in its primary. The current transformer presents a negligible load to the primary circuit.

Product name	Magnetic Components current sense transformer
Model Number	CT series
Usage	Smart meter, Energy monitoring devices
Coil Structure	Toroidal
Phase	Single
Material	core, wire, resin , plastic case
Certification	ISO9001:2015, ROHS
Package	Carton
Shipping Term	DHL Fedex TNT UPS
Product features	1.Low profile, compact size, Epoxy resin encapsulated, fully enclosed. 2. PCB mounting type, easy to fix and install. 3.wide linearity range for output current and low phase shift error. 4.Customer specifications are available. 5. Used in universal and be in good interchangeability.

Applications :

Current transformer can play the role of current conversion and electrical isolation.
Each group does not interfere with each other and operates relatively independently, which is conducive to the safe and stable work of the equipment
Obtain the appropriate working voltage, rectifier or rise, buck after the operation of the equipment
If the secondary fault occurs, it will not affect the (primary) main line operation, reducing the frequency of maintenance
According to the design of the circuit, the transformer will be more in line with the operation needs of the product

Notes: Product specifications can be customized
