SMD Shielded Choke Coil Surface Mount Power Inductors

Name: SMD Shielded Choke Coil Surface Mount Power Inductors
Brand: Shinhom
Price: 1 USD

SMD Shielded Choke Coil Surface Mount Power Inductors Manufactures

Brand Name : Shinhom

Model Number : LPM12 Series

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Nature of Operation : SMD power inductor

Inductance : 0.22uH to 100 uH

DCR : 1.5mΩ to 111.5mΩ

Rated current : 3A to 45A

Operating temperature : -40℃ to +105℃

Storage Temperature : -40℃ to +105℃

Contact Now

SMD Shielded power inductor , Choke Coil , High Current Inductor with up to 50A,SMD high reliability coils chokes

Features:

Magnetically shield power inductor Shielded SMD power chip inductor For high current up to 50A and very low DCR Reflow and hand soldering are available Good solder fillets and character prevents damage during soldering reflow

Applications:

Notebook computerBattery power equipmentDC/DC converterDigital camera and scannerCD-ROM/DVD and PDA

Electrical parameter:

Tested at 100kHz, 0.1 V RMSInductance: uH 20% (M)
DC current at which the inductance drops 10% (type) from its value without current
Operating temperature: range -40 to 105 degree Celsius
Electrical characteristics at 25 degree Celsius

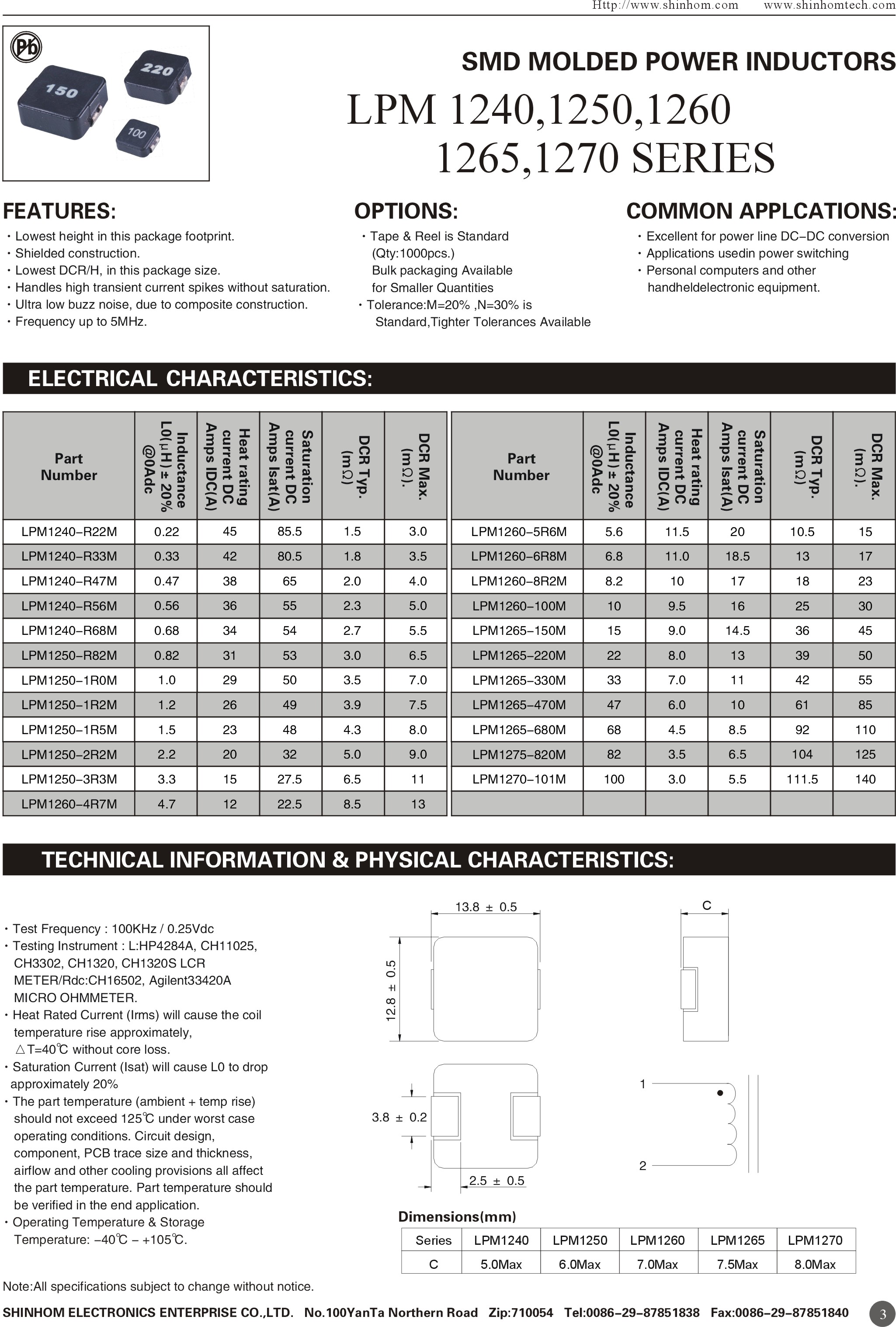

SMD Shielded Choke Coil Surface Mount Power Inductors

Note: Product specifications can be customized.Custom inductance values are available.

Product Tags:

Choke Coil Surface Mount Inductors

50A Surface Mount Power Inductors

SMD Surface Mount Power Inductors
